Din41612 Series

< >

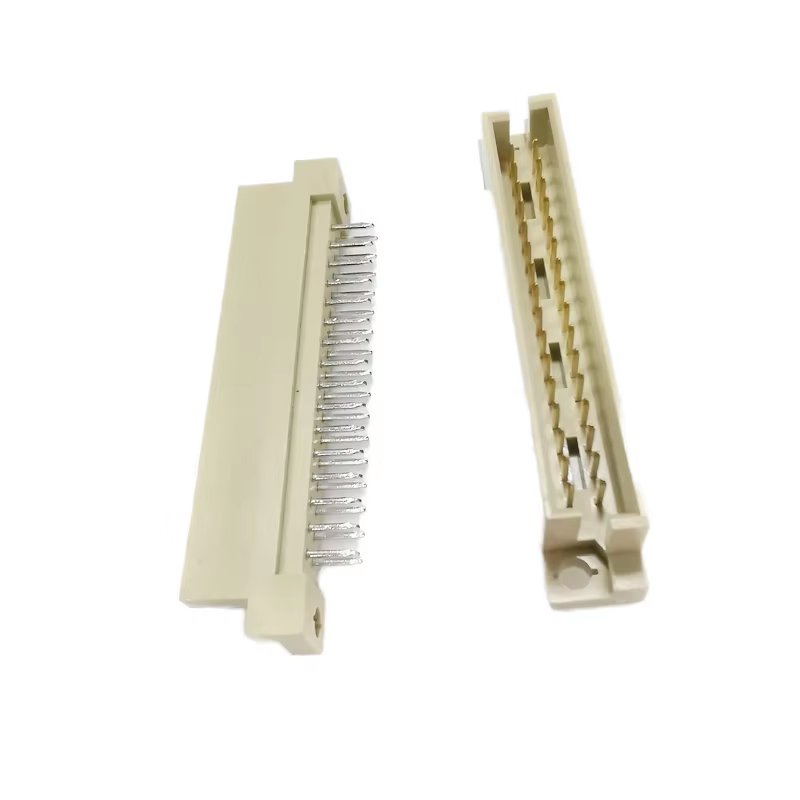

2.54mm Din41612 Dual Row Male Straight Type 32pin

Model Number：DIN41612

Color:White

Curent Resistance:2 AMP

Contact Resistance:30mΩ Max

Withstand Voltage:AC100V/0.5mA/60s

Insulation Resistance:DC500C/50mOΩ

Operation Temperature:-55℃ to 125℃

Contact Material: Phosphor Bronze

Insulator Material: Polyester UL94V-0

Shell Material: Steel or Brass Ni/Sn or Au Plated

Din41612 Customized Specification:

Pitch: 2.54mm 5.08mm

Specification: Daul/Three/Four row, Straight/Right Angle/ Type, 20pin 32pin 48pin 64pin 96pin 120pin 160pin

Female Header Customized Specification:

Pitch: 1.0mm 1.27mm 1.5mm 2.0mm 2.54mm 3.96mm 5.08mm

Specification: Single/Daul/Three/Four row, Straight/Right Angle/SMT Type, Centipede Foot Type, Bottom Entry Type

Pin Header Customized Specification:

Pitch: 1.0mm 1.27mm 1.5mm 2.0mm 2.54mm 3.96mm 5.08mm

Specification:Single/Daul/Three Row, Straight/Right Angle/SMT, Single/Double Plastic
